Beskrivning

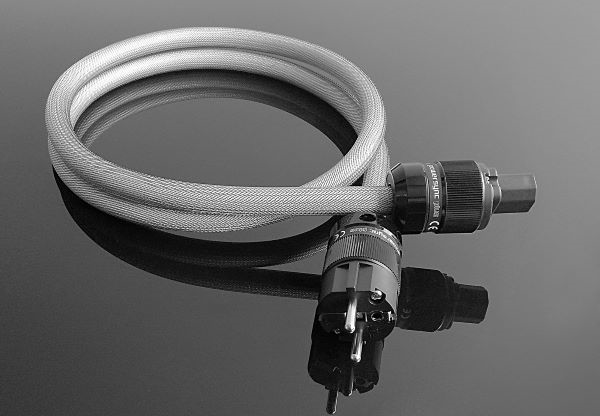

PowerSync PLUS is a representative of the new generation of GigaWatt power cables, initiated by the LC-3EVO.
The conductors are made from OFHC C10100 copper, with 5N purity, additionally annealed, to get a homogeneous structure and better conductivity.
The cable consists of three leads with a cross-section of 2.5mm2 insulated with PE dielectric. Each lead contains 12 strands with a diameter of 0.514mm.
The conductors are protected with a static shield made of plastic laminated aluminum foil. The tight construction of the screen, covering 100% of the cable surface, perfectly protects against unwanted external EMI and RFI noise, and prevents the formation and propagation of internal interference. There is an additional drain wire under the screen.
The conductors are surrounded by a thick layer of flexible insulation, which is also an excellent material damping unwanted vibrations.
The whole is protected by a three-layer outer jacket, which consists of a combination of two layers of nylon mesh and a layer of dense glass fiber braid.
All conductors are connected to the plug terminals mechanically, without soldering, which guarantees reliability and optimal performance.
The conductors are made from OFHC C10100 copper, with 5N purity, additionally annealed, to get a homogeneous structure and better conductivity.
The cable consists of three leads with a cross-section of 2.5mm2 insulated with PE dielectric. Each lead contains 12 strands with a diameter of 0.514mm.
The conductors are protected with a static shield made of plastic laminated aluminum foil. The tight construction of the screen, covering 100% of the cable surface, perfectly protects against unwanted external EMI and RFI noise, and prevents the formation and propagation of internal interference. There is an additional drain wire under the screen.
The conductors are surrounded by a thick layer of flexible insulation, which is also an excellent material damping unwanted vibrations.
The whole is protected by a three-layer outer jacket, which consists of a combination of two layers of nylon mesh and a layer of dense glass fiber braid.
All conductors are connected to the plug terminals mechanically, without soldering, which guarantees reliability and optimal performance.
3x 2,5 QMM, OFHC multistrand
12 strands (0,514mm) per lead, PE dielectric
7 strands drain wire
Aluminum foil static shield
PVC, flexible external isolation.
Outer Jacket – dense fiberglass braid+nylon mesh braid
Outer diameter Ø 15mm
The cable is much thicker, but also more flexible than the LC-1EVO.
Manufacturer: http://www.gigawatt.eu/home/
